PE, ABS, EVA Plastic Masterbatch Granules Making Machine

Name: PE ABS EVA Plastic Masterbatch Granules Making Machine
Brand: YongJie
Price: 1 USD

Quality PE, ABS, EVA Plastic Masterbatch Granules Making Machine for sale

plastic processed : PP/PVC/WPC/PE/ABS/XPS/Polystyrene

application : Granules

Model Number : SJSL-92A/B

Screw Design : Double-screw

Place of Origin : Jiangsu, China

Brand Name : YongJie

voltage : 380V 50HZ

dimension(l*w*h) : Model

After-sales Service Provided : Engineers available to service machinery overseas

Keyword : plastic masterbatch making machine

Name : YongJie

Warranty : 1 year

Color : any color as your require

Diameter(mm) : 92

L/D : 32-64

RPM ( r/min) : 400/500/600/800

T/N : 5.9/4.7/5.0

Capacity (Kg/h) : 650-2000

Torque(N.m) : 2815/2250/2365/2250

Certification : CE ISO9001

Automatic Grade : High Automation

Power : 250/280kw

Condition : New

Weight : 1t-10t

Contact Now

PE, ABS, EVA plastic masterbatch granules making machine

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Model	Diameter(mm)	L/D	RPM ( r/min)	Power (Kw)	Torque(N.m)	T/N	Capacity (Kg/h)
SJSL-20	20	32-44	600	5.5	30	4.8	6.5-15
SJSL-36	36	32-48	600	15	115	4.2	30-75
SJSL-51A	51	32-52	500	45	405	5.1	100-200
SJSL-51B	51	32-52	600	55	415	5.2	150-25
SJSL-63A	63	32-62	400	55	620	4.4	160-250
SJSL-63A	63	32-62	500	75	675	4.8	200-300
SJSL-63B	63	32-64	600	90	675	4.8	225-375
SJSL-63B	63	32-64	800	110	620	4.4	300-500
SJSL-75A	72	32-64	400	90	1015	4.7	225-350
SJSL-75A	72	32-64	500	110	1005	4.6	300-550
SJSL-75B	72	32-64	600	132	990	4.6	400-650
SJSL-75B	72	32-64	800	160	900	4.2	480-800
SJSL-92A	92	32-64	400	250	2815	5.9	650-1050
SJSL-92A	92	32-64	500	250	2250	4.7	750-1250
SJSL-92B	92	32-64	600	280	2365	5.0	900-1500
SJSL-92B	92	32-64	800	280	2250	4.7	1200-2000
SJSL-135A	135	32-48	400	315	6190	4.6	1500-2500
SJSL-135B	135	32-48	500	400	6750	5.1	200-3500

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

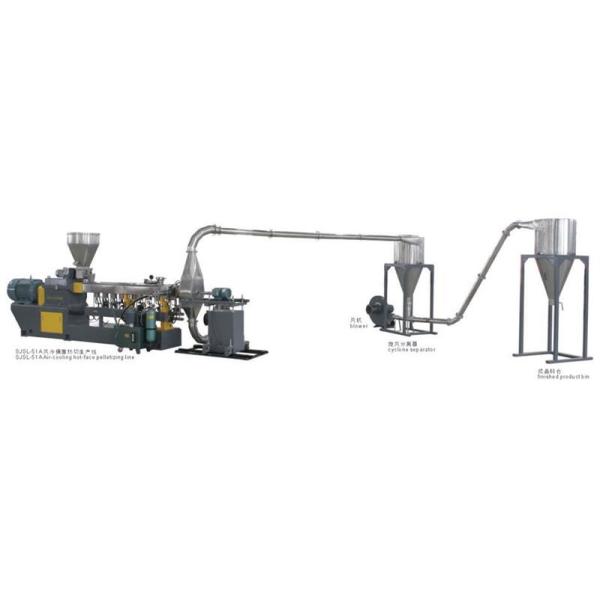

Application for water-ring hot face production line

1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.

2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,

cable coating material , thermal contraction pipe material.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic

elastomer, EVA and hot melt additives.

4. Color mater batch: PE, ABS, PS, EVA master batch, etc.

5. ABS, EVA flaming retarding master batch, etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.

Auxiliary

Water-ring cover
pelletizer
Centrifugal dehydrator
Vibrating sieve
Bin

Other product

Pelletizing in the water line

Air-cooling strand pelletizing line

Air-cooling hot-face pelletizing line

Water-cooling stand pelletizing line

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
